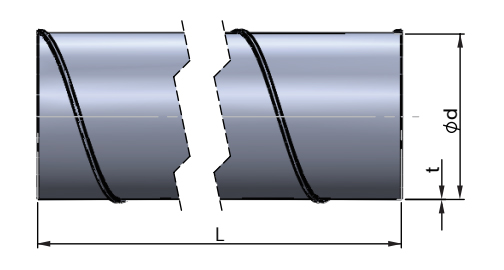

● 螺旋风管采用镀锌薄钢板卷制；
● 标准长度为3，4，5m；
● 特殊长度和板厚可根据要求订制 |
| 产品规格表 |
| 螺旋风管重量单位：kg/m |
| d | W | ||||||||
| t=0.40 | t=0.50 | t=0.60 | t=0.75 | t=1.00 | t=1.20 | t=1.50 | t=1.80 | t=2.00 | |
| 80 | 0.9 | 1.1 | 1.4 | 1.7 | |||||
| 100 | 1.1 | 1.4 | 1.7 | 2.1 | |||||
| 112 | 1.3 | 1.6 | 1.9 | 2.4 | |||||
| 125 | 1.4 | 1.8 | 2.1 | 2.6 | 3.5 | ||||
| 132 | 1.5 | 1.9 | 2.3 | 2.8 | 3.7 | ||||
| 150 | 1.7 | 2.1 | 2.6 | 3.2 | 4.2 | ||||
| 157 | 1.8 | 2.2 | 2.7 | 3.3 | 4.4 | ||||
| 160 | 1.8 | 2.2 | 2.7 | 3.4 | 4.5 | ||||
| 175 | 2.5 | 3.0 | 3.7 | 4.9 | |||||
| 180 | 2.5 | 3.1 | 3.8 | 5.1 | |||||
| 182 | 2.6 | 3.1 | 3.8 | 5.1 | |||||
| 192 | 2.7 | 3.3 | 4.1 | 5.4 | |||||
| 200 | 2.8 | 3.4 | 4.3 | 5.6 | |||||
| 207 | 2.9 | 3.6 | 4.5 | 5.8 | |||||
| 212 | 3.0 | 3.6 | 4.6 | 6.0 | |||||
| 225 | 3.2 | 3.9 | 4.9 | 6.3 | |||||
| 232 | 3.3 | 4.0 | 5.0 | 6.5 | |||||
| 250 | 3.5 | 4.3 | 5.4 | 7.0 | 8.4 | ||||
| 257 | 3.6 | 4.4 | 5.6 | 7.2 | 8.7 | ||||
| 280 | 4.0 | 4.8 | 6.1 | 7.9 | 9.5 | ||||
| 282 | 4.0 | 4.8 | 6.1 | 7.9 | 9.5 | ||||
| 300 | 4.3 | 5.1 | 6.5 | 8.5 | 10.1 | ||||
| 315 | 4.5 | 5.4 | 6.8 | 8.9 | 10.1 | ||||
| 332 | 4.7 | 5.7 | 7.2 | 9.4 | 11.2 | ||||
| 350 | 4.9 | 6.0 | 7.6 | 9.9 | 11.8 | ||||
| 355 | 5.0 | 6.1 | 7.7 | 10.1 | 12.0 | ||||
| 365 | 5.2 | 6.7 | 7.9 | 10.3 | 12.3 | ||||
| 400 | 5.6 | 6.9 | 8.7 | 11.3 | 13.5 | ||||
| 440 | 6.2 | 7.5 | 9.5 | 12.5 | 14.9 | ||||
| 450 | 6.3 | 7.7 | 9.7 | 12.8 | 15.2 | ||||
| 500 | 7.0 | 8.6 | 10.8 | 14.2 | 17.0 | ||||
| 550 | 7.7 | 9.4 | 11.9 | 15.6 | 18.7 | ||||
| 560 | 7.9 | 9.6 | 12.1 | 15.9 | 19.0 | ||||
| 600 | 8.4 | 10.3 | 13.0 | 17.0 | 20.4 | ||||
| 630 | 10.8 | 13.6 | 17.9 | 21.4 | |||||
| 650 | 11.2 | 14.1 | 18.4 | 22.1 | |||||
| 700 | 12.0 | 15.1 | 19.8 | 23.8 | |||||
| 710 | 15.4 | 20.1 | 24.2 | ||||||
| 750 | 16.2 | 21.3 | 25.5 | ||||||
| 800 | 17.3 | 22.7 | 27.2 | ||||||
| 850 | 18.4 | 24.1 | 28.9 | ||||||
| 900 | 19.5 | 25.5 | 30.6 | ||||||
| 950 | 20.5 | 26.9 | 32.3 | ||||||
| 1000 | 21.6 | 28.3 | 34.0 | ||||||
| 1100 | 23.8 | 31.2 | 37.4 | ||||||
| 1120 | 24.2 | 31.7 | 38.1 | ||||||
| 1200 | 26.0 | 34.0 | 40.8 | ||||||
| 1250 | 27.0 | 35.4 | 42.5 | ||||||
| 1300 | 36.9 | 44.2 | |||||||
| 1400 | 39.7 | 47.6 | |||||||
| 1500 | 42.5 | 51.0 | |||||||
| 1600 | 45.4 | 54.4 | |||||||
| 1700 | 48.2 | 57.8 | 72.3 | 86.7 | 96.4 | ||||
| 1800 | 51.0 | 61.2 | 76.5 | 91.8 | 102.0 | ||||
| 1900 | 53.9 | 64.6 | 80.8 | 96.9 | 107.7 | ||||
| 2000 | 56.7 | 68.0 | 85.0 | 102.0 | 113.4 | ||||
| 2100 | 89.3 | 107.1 | 119.1 | ||||||
| 2200 | 93.5 | 112.3 | 124.7 | ||||||
| 2300 | 97.8 | 117.4 | 130.4 | ||||||
| 2400 | 102.0 | 122.5 | 136.1 | ||||||
| 2500 | 106.3 | 127.6 | 141.7 | ||||||
